Semi-Automatic Bag-In-Box Filling Machine

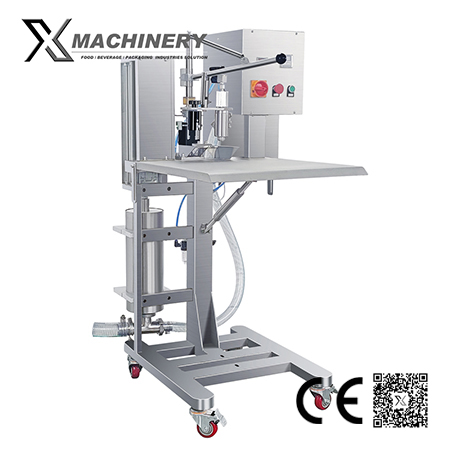

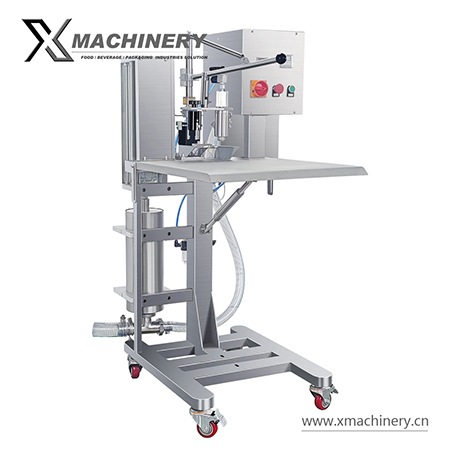

Semi-Automatic Bag-In-Box Filling Machine BIBF-5000 ( MSBFP-30)
1. 1 Introduction to the machine
The filling volume is controlled by a cylinder, with high filling accuracy, intuitive and convenient filling volume setting and adjustment, stable performance, good reliability and durability, suitable for filling water, cream, sauce, red wine, juice and other liquids...
2 Performance characteristics:
1). The machine is mainly made of stainless steel.
2). It can complete multiple processes such as capping, vacuuming, quantitative filling, and capping in place at one station, and the operation is simple;
3). The filling volume is controlled by a cylinder, with high filling accuracy, fast speed, and easy filling volume setting and adjustment;
Technical information
Semi-Automatic Bag-In-Box Filling Machine BIBF-5000 ( MSBFP-30)
1. 1 Introduction to the machine
The filling volume is controlled by a cylinder, with high filling accuracy, intuitive and convenient filling volume setting and adjustment, stable performance, good reliability and durability, suitable for filling water, cream, sauce, red wine, juice and other liquids...
2 Performance characteristics:
1). The machine is mainly made of stainless steel.
2). It can complete multiple processes such as capping, vacuuming, quantitative filling, and capping in place at one station, and the operation is simple;
3). The filling volume is controlled by a cylinder, with high filling accuracy, fast speed, and easy filling volume setting and adjustment;
Model no : BIBF-5000 ( MSBFP-30)
Filling quantity range: 500-5000ml
Filling precision: ±1%
Filling speed: 5-6 times/ min
Power: 3W
Voltage :110/220v 50/60Hz
Air consumption: 0.4-0.6Mpa
Material SUS 304 ( touch part for filling material )

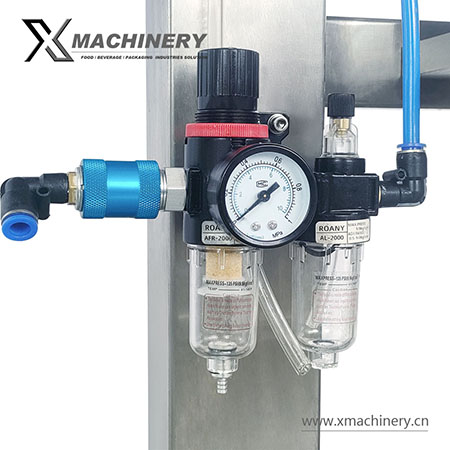

Pneumatic system
Air Cylinder : Air Tac
